Viewtech Heavy Duty Flush Mount Camera
Product may not be held in stock or there's more details required to affect purchase.
Please click "MAKE AN INQUIRY" to initiate your order

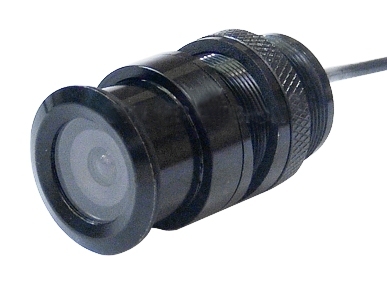

Click to EnlargeDesigned for large vehicle and industrial applications this heavy duty flush mount camera can be mounted flush into a surface or offset and even angled by using the included washers. Perfect for trucks and city bus applications. Incoporates a high resolution Sharp 420TVL sensor for sharp clarity and good colour.
The camera comes with a 4 pin plug type connector as shown. An RCA adaptor is also included for customers wishing to connect to RCA type connectors.
Features:
-
wide 110 degrees viewing angle
- IP66 water proof rating
- easy to install.
- variable angle washer design will allow varied angled installation
Included:
- 1 x Camera
- mounting hardware
- 1 x User manual
Calculate your shipping
You currently don't have any products in your cart.
For a shipping estimate on this product, please select your region from the dropdown.
Specifications
|
Camera Specifications |
|
| Resolution | 420 TVL or 512 x 582 pixels. |
| Image Sensor | Sharp 1/3" CCD |
| Colour System | PAL |
| Viewing Angle | 120° |
| Min Illumination | 0.5Lux |
| Video Output | 1.0Vp-p 75 Ohms |
| Electronic Shutter | 1/50 to 1/100000 sec |
| AGC | Auto |
| Signal to Noise Ratio | >48dB |
| White Balance | Auto |
| Voltage | 12V DC |
| Current | 120mA max |
| Size | 70 deep, 31 diameter |
| Cable Tail | 300mm |
