Viewtech Number Plate Mount Camera
Product may not be held in stock or there's more details required to affect purchase.
Please click "MAKE AN INQUIRY" to initiate your order

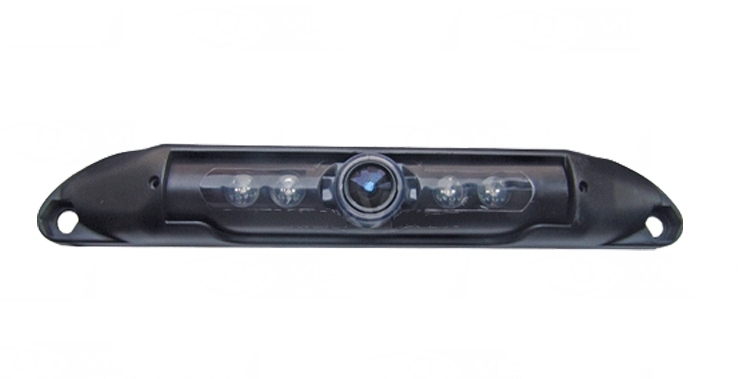

Click to EnlargeThis great little camera mounts straight to or above your number plate and will enable you to see behind at all times. It has built in infrared LEDs for a great night time view and a high resolution 420TV CCD camera for super clear colourful images.
Enjoy the quality and reliability of a hardwired CCD reversing camera. This unit will connect straight to your existing LCD car monitor or it can be added to one of ours as a package.
The camera comes with a 4 pin plug type connector as shown. An RCA adaptor is also included for customers wishing to connect to RCA type connectors.
Included:
-
1 x Camera
Calculate your shipping
You currently don't have any products in your cart.
For a shipping estimate on this product, please select your region from the dropdown.
Specifications
Features:
-
full resolution high quality CCD camera
-
infrared night vision
-
easy to install and mount
-
adjustable tilt on camera module
-
camera module is encased in resin for 100% water resistance
-
has din plug installed and comes with RCA break out cable
-
wide 160 degree viewing angle
|
Camera Specifications |
|
| Resolution | 420 TVL or 512 x 582 pixels. |
| Image Sensor | Sharp 1/3" CCD |
| Colour System | PAL |
| Viewing Angle | 92° |
| Min Illumination | 0.2Lux |
| Colour System | PAL |
| Video Output | 1.0Vp-p 75 Ohms |
| Electronic Shutter | 1/50 to 1/100000 sec |
| AGC | Auto |
| Signal to Noise Ratio | >48dB |
| White Balance | Auto |
| Voltage | 12V DC |
| Current | 120mA max |
| Size | 192(w) x 28 (H) x 20 (D) |
| Cable Tail | 500mm |
