Viewtech 5 inch LCD Reversing System

NZD504.85 inc GST (NZD439.00 + GST) All prices on this website are in NZD

Product may not be held in stock or there's more details required to affect purchase.

Please click "MAKE AN INQUIRY" to initiate your order

Viewtech 5" LCD Reversing System with Numberplate Cam

This system is perfect for SUV's and smaller vehicles but is also fine for any truck or bus.  The system is very versatile and can be fitted to any type of vehicle.  The camera is surface mounted normally straight onto the numberplate, is wide angled and full colour.    Now with an even wider 160° view or extra safety.   This amazing field of view allows you to see 8 metres wide at a distance of only 4 metres back.  All of this detailed is combined with a 5" high resolution digital LCD monitor.

Applications:

  • large cars
  • Utes
  • SUVs
  • Vans
  • Small trucks

For vehicles where the rear vision mirror is redundant ie. box body trucks and some utes we have a mirror replacement mount which enables the monitor to replace the rear vision mirror.

87% By Consumer Magazine - Featured in Consumer Magazine September 2011.  "Excellent range of vision, Excellent image quality".

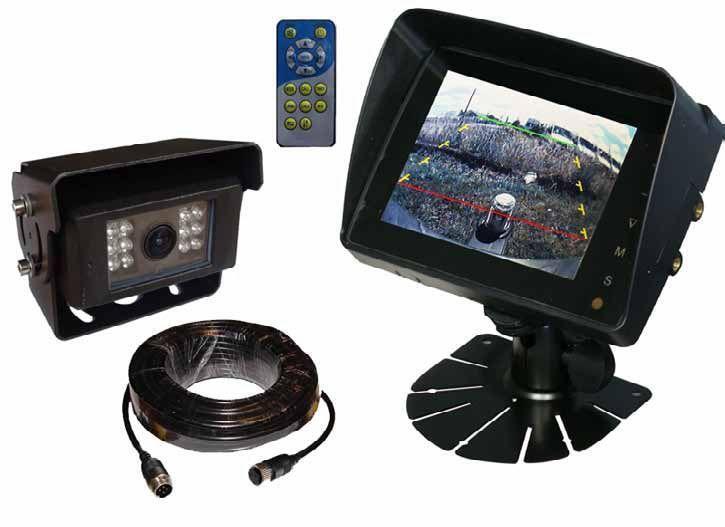

Included:

  • monitor
  • camera
  • 10m cable
  • wiring loom
  • dash mount + double sided sticker
  • infrared remote control
  • wall mount
  • sun visor

An option heavy duty overhead mount can also be supplied.   This mount is specially designed to use in replace of the rear view mirror if the rear view mirror is redundant due to blocked view ie. box bodies or utes with canopies etc.

Calculate your shipping

You currently don't have any products in your cart.

For a shipping estimate on this product, please select your region from the dropdown.

Specifications

Monitor Specifications:

Screen 5" TFT LCD Wide angle view
Audio 1W Built in speaker
Colour System PAL
Power Supply 12V-32V DC
Outer Dimensions

147mm(W) x 109mm(H) x 26mm(D)

Dot Pitch 0.107h x .37v
Resolution 640 x 480
Contrast Ratio 300:1
Brightness 350cd/m2
Power Consumption 12W



Camera Specifications:

Image Sensor Sharp 1/4" CCD
Horizontal Resolution 420 lines
Colour System PAL
Min Illumination 0.0Lux
Video Output 1.0Vp-p 75 Ohms
Electronic Shutter 1/50 to 1/100000 sec
Power 12V DC
White balance auto
Angle of View 160 degrees
Size 192(w) x 28 (H) x 20 (D)
