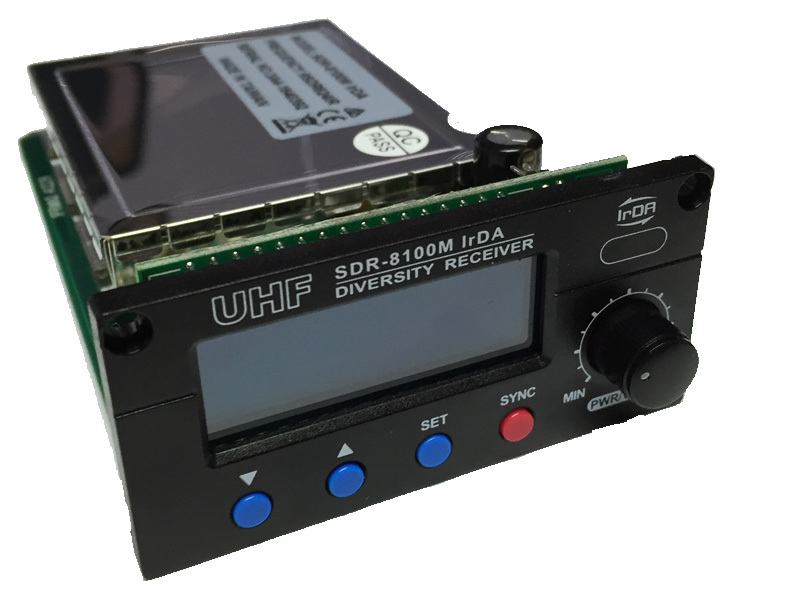

Chiayo SDR-8100M-IRDA Receiver Module

NZD328.90 inc GST (NZD286.00 + GST) All prices on this website are in NZD

Product may not be held in stock or there's more details required to affect purchase.

Please click "MAKE AN INQUIRY" to initiate your order

UHF 100-frequency 2-way sync. diversity wireless microphone receiver module with LCD display. Can be used in Stage Pro, Focus lithium and 2016 models, and new Challenger Portable PA and the QR-2000N and 4000N module frames.

Simple to install - slides into place with guide rails and a multipin connector.  Another world class industry leading innovation from Chiayo Electronics in Taiwan.

Features

  • Patented IrDA technology for 2-way data transfer between transmitter and receiver. Taiwan patent No. : 94128675.
  • UHF synthesized diversity for highest quality and dropout-free reception.
  • Helical Filter RF front end ensures high selectivity.
  • Excellent IF design delivers high image and spurious rejection.
  • Anti-interference Pilotone circuit.
  • RF noise squelch circuit.
  • Auto-scan function searches for the cleanest frequency and simplifies multi-channel setup.
  • Squelch control accessible via LCD.
  • Power and volume control switch.
  • UP / DOWN channel selection key.
  • Blue LCD backlit display channel, RF, AF, frequency and squelch indicator.
  • Battery low indicator.
  • Balanced and unbalanced audio output.
  • 20-pin connection for easy installation.
Calculate your shipping

You currently don't have any products in your cart.

For a shipping estimate on this product, please select your region from the dropdown.

Specifications

Model SDR-8100M IrDA
Frequency Range UHF 600-900MHz
Switching Bandwidth 25MHz
Switchable Frequencies 100
Display Screen LCD blue backlit
Oscillation PLL Synthesized
Frequency Stability ±0.005%
Frequency Scan Yes
Receiving Method Diversity
2-Way synchronization Yes
Sensitivity -100dBm at S/N ratio > 80dB
Image Rejection > 85dB
Spurious Rejection > 85dB
S/N Ratio > 110dB
Peak Deviation ±40KHz
T.H.D. < 0.5%
Audio Outputs Unbalanced: +4dBm (1.25V)
Balanced: +10dBm (2.5V)
Squelch RF noise squelch & Pilotone squelch
Power Supply DC 12V
Weight (g) 113
Dimensions (mm) 73*138*36
Matched Transmitter SQ-6100/5100/2100 IrDA,SM-5100/6100 IrDA
Matched Amplifier Stage Pro, Challenger C-1000-D(BD), Focus (2016+)
Matched Receiver QR-2000N / 4000N
