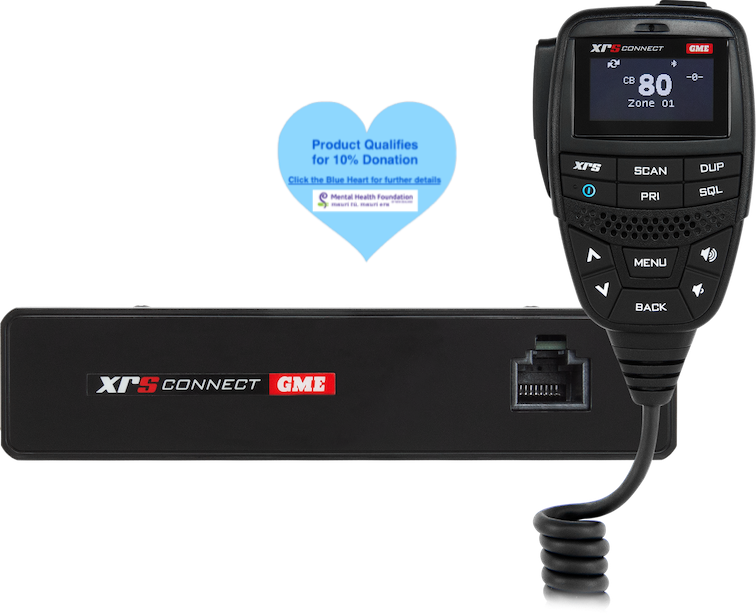

GME XRS-370C XRS Connect Compact UHF CB Radio

NZD669.00 inc GST (NZD581.74 + GST) All prices on this website are in NZD

Get Connected, Get XRS - Bluetooth enabled UHF CB radio

The XRS family is a new Australian Made radio platform designed to be smart, adaptable and rugged.

Enabled by Bluetooth® Smart technology, XRSTM is the first of a new generation of connected UHF radios with unique features never before seen.

It is the first ever UHF CB radio with app control and introduces new features such as creating and sharing scan lists and instant access to the entire Australian and New Zealand registered analogue frequency database.

Much like a smart device, the XRS family are software upgradable via the app, keeping customers up to date with the latest features and technology.

The new XRS Connect professional grade speaker microphone features a powerful 2 watt speaker, customisable buttons and a high contrast OLED screen guaranteeing crystal clear, anti-glare display.

For more information please visit XRS Connect UHF CB radio microsite

Genuine GME 5 year warranty, plus download and register the new XRS Connect App and receive one year additional warranty.

Visit Google Play or the App Store and search 'XRS Connect'.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by GME is under license.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.







Calculate your shipping

You currently don't have any products in your cart.

For a shipping estimate on this product, please select your region from the dropdown.

Specifications

Product Details

  • Bluetooth Smart Connectivity - BT Classic 2.1 and BT Low Energy 4.0
  • End user software upgradeable via the app
  • Download the XRS Connect App on Google Play or the App Store
  • App compatible with iOS9.0, Android 5.0 and above
  • Windows app compatible with 7.0 and above available January 2017
  • Easy to configure and customise radio via the app
  • Create and share personalised scan lists - up to 400 frequencies
  • Instant access to over 20,000 receive frequencies
  • XRS Connect speaker microphone with OLED display
  • Customisable buttons
  • 25% faster scan speed at 50 channels per second
  • 5 year warranty + 1 additional year for downloading and registering app
Compliant Specification - Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX 476.425-477.4125 MHz
Number of Channels =80
Channel Spacing =12.5 kHz
Operation Mode - Simplex or half Duplex with repeater talk around.
Scanning Speed = 25 ms per channel (40 channels per second)
Antenna Impedance =50 Ohms nominal
Nominal Battery Voltage = 12 volts DC
Operating Voltage Range 10-16 volts DC
Battery Polarity - Negative Earth
Standard Test Voltage = 13.8 volts DC
Overvoltage Protection - 30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Reverse Voltage Protection -Diode Crowbar
Overcurrent Protection - In-line 2 amp fuse
Operating Temperature =-10°C to 60°C
Zones =8 (50 channels per zone)
Scan lists =3

TRANSMITTER

RF Output =5 watts
Spurious Emission < - 70 dBc
Frequency Error < ± 1.5 kHz
Modulation FM
Maximum Deviation < ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response +6 dB per octave 300 Hz to 3 kHz +1-3 dB
Demodulated Audio Signal to Noise > 45 dB unweighted
Current Consumption 1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies 38.85 MHz, 450 kHz
Sensitivity  - 122 dBm for 12 dB SINAD unweighted
Selectivity  - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity -72 dB
Blocking Immunity -98 dB
Spurious Response Immunity 70 dB
Audio Output Power 3 watts average into 4 Ohms
Audio Signal to Noise > 45 dB unweighted
Current consumption < 175 mA muted 750 mA Full volume
Conducted Spurious Emission < - 70 dBm

MECHANICAL SPECIFICATIONS

Dimensions 29 (H) x 128 (L) x 117 (D) mm
Weight 450 grams
Antenna SO239 panel socket
External Speaker 3.5 mm mono jack
Microphone Port 6 Way telephone style with rubber strain relief

OTHER

Display type OLED

In the Box:

  • XRS-370C UHF CB radio with Bluetooth Smart Connectivity
  • XRS Connect speaker microphone
  • Microphone clip and radio mounting bracket
  • DC power Lead
  • Screw pack
  • LE040 Mic extension lead
  • AD008 Mic extension adaptor kit
  • Quick start guide
